Industry Overview
The manufacturing of electrical enclosures, NEMA boxes, and industrial control cabinets demands a delicate balance between high structural integrity and superior surface aesthetics. These specialized metal structures, often oversized and cumbersome, require flexible and powerful resistance welding solutions. WPI Taiwan provides a comprehensive ecosystem of equipment designed to tackle unique geometry and internal access challenges, ensuring perfectly aligned, high-strength welds that meet rigorous industrial standards.
Solving Enclosure Industry Challenges: The WPI Taiwan Advantage
1. Complex Access & Large-Scale Geometry: Optimized Suspension Systems
Enclosures range from tall distribution boards to deep control boxes. Accessing internal joints without moving the heavy workpiece is the primary efficiency challenge.
- Tall & Deep Boxes: WPI’s Suspension X-Type Spot Welding Guns equipped with long welding arms can penetrate deep into the central cavity of oversized enclosures. Our guns support vertical entry via top openings or horizontal entry through side panels. The unrestricted maneuverability and gun flipping capability are specifically engineered for the unique structural demands of the cabinet industry.

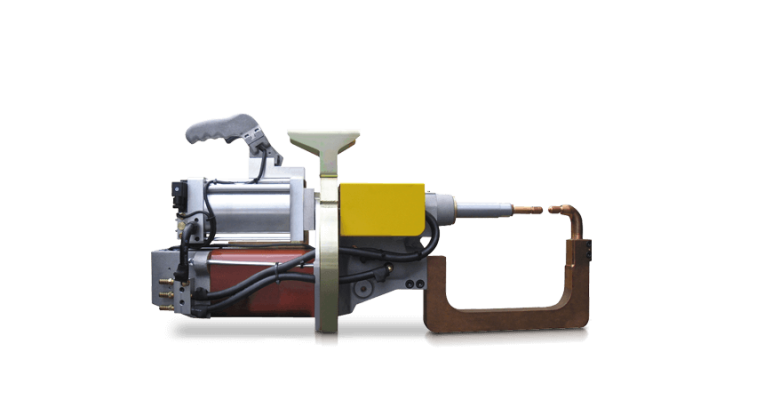

- Corner Precision: For standard cabinet assembly, C-Type Weld Guns are indispensable. Our specialized C-guns feature a “hook-action” downward stroke, allowing operators to secure difficult-to-reach internal corners across all four quadrants with ease.
2. Internal Reach Without Obstruction: Pneumatic Rocker Arm Advantage
Traditional stationary spot welders often have vertical mechanisms on both upper and lower arms, which block entry into box-like structures.

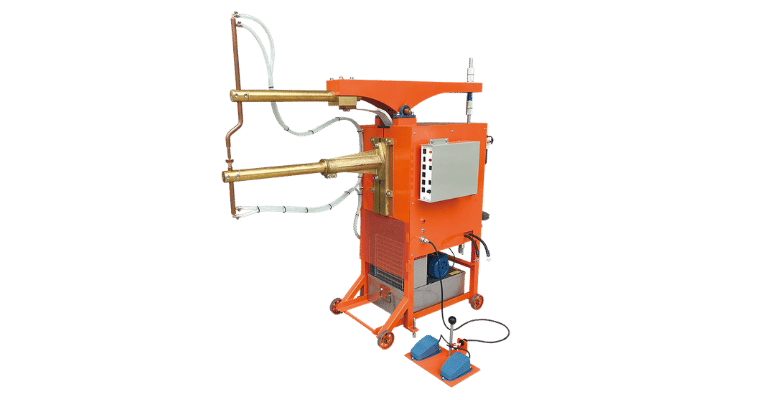

- Obstruction-Free Deep Welding: The Pneumatic Rocker Arm Spot Welder is engineered without a vertical mechanism on the upper arm to provide maximum clearance. By installing our specialized S-shape welding arms, this unique profile allows the upper arm to reach deep into the complex interior of a cabinet effortlessly. By simply flipping the cabinet, all internal connection surfaces can be spot-welded with high efficiency and precision. See our demonstration video on the product page.
3. Heavy-Workpiece Mobility: “Mobile Welder, Static Workpiece” Approach
Large-scale industrial cabinets are heavy and difficult to maneuver.
- XYZ & Rotation Flexibility: Utilizing WPI’s Suspension-Type systems, the heavy cabinet remains stationary on the ground or a jig. The suspension gun’s dynamic XYZ-axis mobility, combined with 360° horizontal rotation and 90° vertical tilting, allows the machine to move fluidly around the static workpiece to complete all necessary welds.
4. Achieving Flawless Aesthetics: Flat Surface Technology
For high-end enclosures, the exterior finish is as important as the structural weld.
- Specialized Flat Finishes: Our Table Spot Welder and Single-Sided Spot Welders feature flat, high-conductivity copper electrodes designed specifically for cabinetry where a smooth exterior is required.
- Universal Swivel Tips: A must-have for the enclosure industry, our Swivel Tips can be mounted on various spot welding machines. This allows for a perfectly flat surface finish without the need for machine modifications, ensuring aesthetic excellence across your entire production line.
Recommended Equipment Checklist for Cabinetry

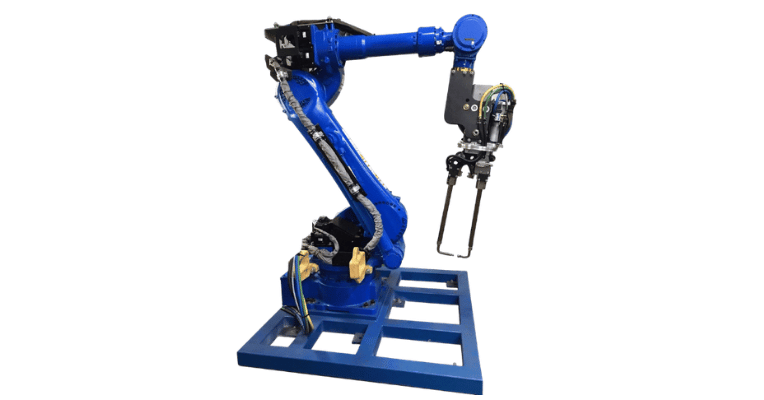

- Robotic Spot Welding Gun: Optimized for high-speed, fully automated production lines.
- Suspension Type Spot Welding Gun: X and C types for manual, flexible assembly of large-scale cabinets.
- Pneumatic Stationary Spot Welder: Engineered for high-speed sub-assembly and component joining.
- Pneumatic Rocker Arm Spot Welder: Best for deep-reach internal welding and straddling box edges.
- Table & Single-Sided Spot Welders: Essential for achieving aesthetic, flat-surface finishes on visible panels.
Why Choose WPI Taiwan for Industrial Cabinets?
- Precision: Microcomputer-controlled parameters for consistent, reliable weld nuggets.
- Versatility: Solutions that handle everything from small control boxes to massive industrial power distribution units.
- Aesthetics: Specialized electrodes that eliminate witness marks and maintain panel flatness.
