Maximum Accessibility and Power for Complex 3D Welding Environments.

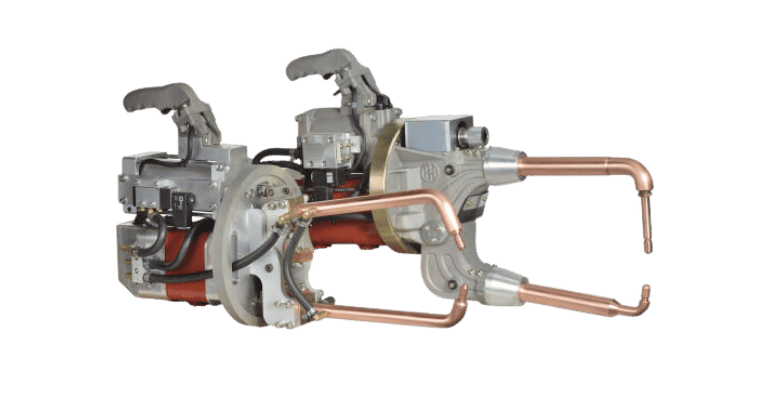

The WPI Taiwan's X-Type Spot Welding Gun (also known as the Scissor type or A type) is a high-performance industrial solution designed for versatility and precision. Unlike traditional fixed welding stations, our X-Type spot welding guns feature an Integrated Transformer design, reducing energy loss and footprint while maximizing mobility.
Engineered for seamless integration with overhead suspension systems and spring balancers, this gun offers unparalleled freedom of movement. It can rotate 360° horizontally and flip 180° vertically, effectively eliminating "welding blind spots." Whether you are handling small-batch custom fabrication or high-volume automotive assembly, our X-Type spot welding gun delivers consistent, high-quality weld nuggets in the most challenging spatial configurations.
Features
-
Integrated Transformer Technology: The built-in compact transformer minimizes secondary circuit impedance, delivering maximum power efficiency and eliminating bulky secondary cables.
-

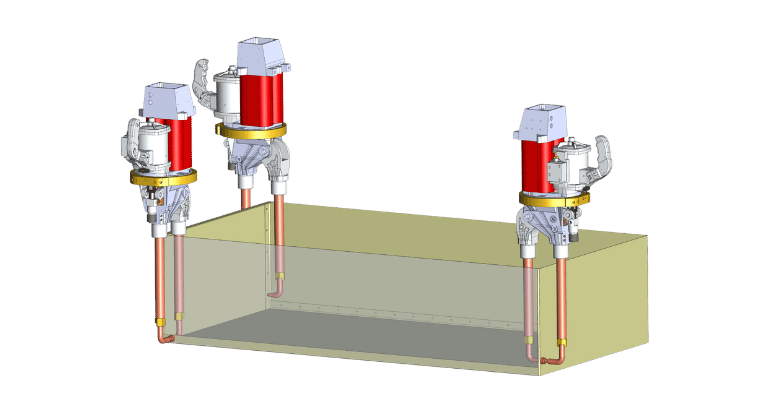

True 3D Spatial Freedom: Equipped with a heavy-duty gyro rotation ring, the gun maneuver effortlessly across X, Y, and Z axes with 360° rotation and 180° tilting for optimal operator ergonomics.
-

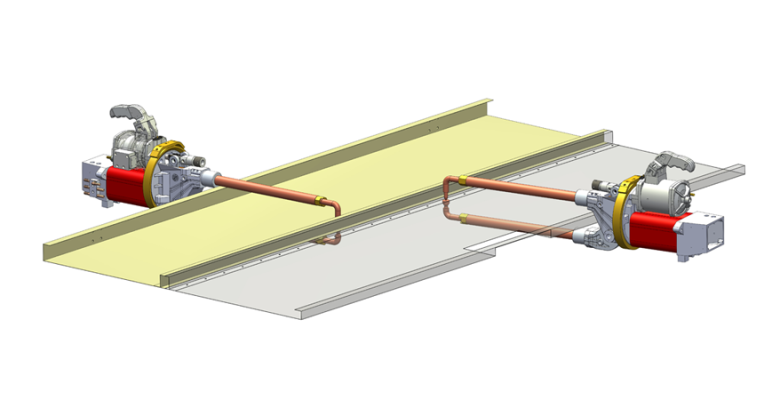

Zero Blind-Spot Welding: The scissor-action mechanism is specifically engineered to reach over flanges and deep into complex assemblies where standard stationary type spot welder cannot access.
-
Customizable Electrode Arms: Available in various arm lengths and geometries. Short arms deliver rapid response and high welding force, while extended arms reach deep internal structural joint.
-
High-Duty Water Cooling: A comprehensive water-cooling circuit protects the electrodes, copper arms, and built-in transformer, ensuring stable current output during continuous manual operation.
Description
Specifications
| Nomal rate at 50%-KVA |
14KVA | 27KVA | 31KVA | 48KVA | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | CH-14-160AU | CH-273AU | CH-274AU | CH-275AU | CH-313AU | CH-314AU | CH-315AU | CH-316AU | CH-414AU | CH-415AU | CH-416AU |
| Operating throat width- mm |
160 | 140 | 200 | 260 | 140 | 200 | 260 | 320 | 200 | 260 | 320 |
| Max output current at 200L arm-KA |
8.5 | 14.5 | 13.5 | 12.2 | 15.5 | 14.5 | 13.5 | 12.5 | 16.5 | 14.5 | 13.5 |
| Weight (no arm & cable)-KG |
32 | 40 | 41 | 42 | 45 | 46 | 47 | 48 | 53 | 55 | 57 |
| Power switch 440V |
2P 100A |
2P 100A |
2P 100A |
2P 100A |
2P 100A |
2P 100A |
2P 100A |
2P 150A |
2P 150A |
2P 150A |
|
Input Voltage: 220V / 380V / 440V (Customizable for Global Standards)
Applications
- Automotive Assembly (BIW): Perfect for welding car doors, pillars, roof reinforcements, and complex chassis components.
- Metal Cabinet & Furniture Fabrication: High-speed assembly of electrical enclosures, and industrial cabinets systems.
- HVAC & Ventilation Systems: Durable spot welding for large air conditioning housings, ductwork.
- Customized Steel Sheet Assembly: Ideal for high-mix, low-volume production lines where part geometries change frequently.
The WPI Taiwan's X-Type Spot Welding Gun is the preferred choice for industries requiring flexible, high-strength joining:
