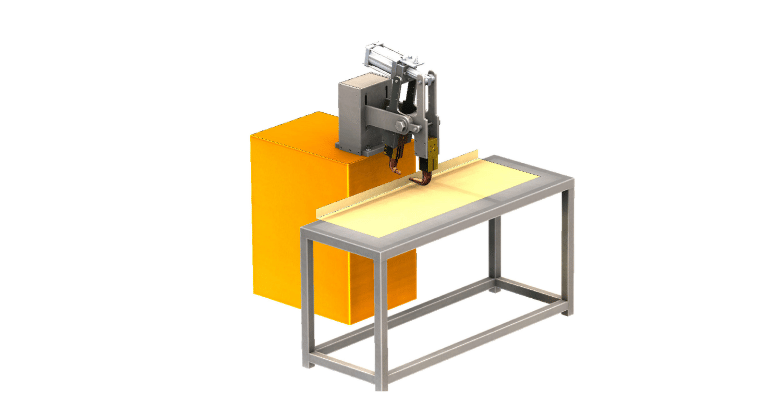

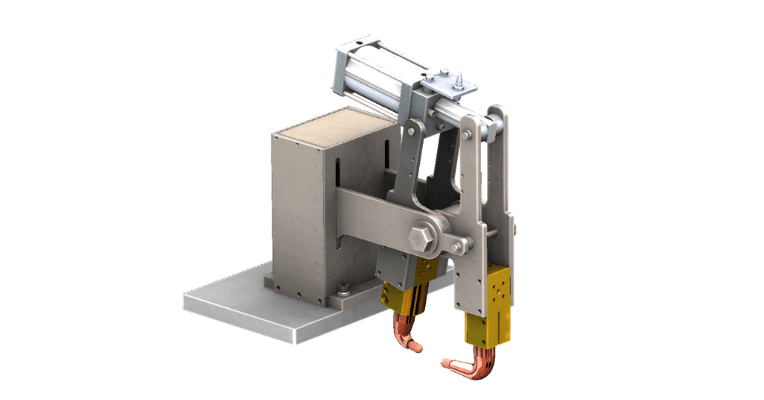

WPI Taiwan’s Fixture Spot Welding Gun is a high-performance, independent resistance welding unit specifically engineered for seamless integration into specialized jigs, fixtures, and automated special-purpose machines (SPM). Designed to overcome the space limitations of standard spot welders, these guns deliver exceptional welding accessibility and a compact modular footprint. Whether for sheet metal structure fabrication or high-speed automated assembly, our fixture guns ensure superior precision, repeatability, and long-term durability — 100% engineered and manufactured at WPI Taiwan.
Features
- Independent Gun Design with High Accessibility:
⇒ Single-Alone Flexibility: Features a spacious throat/headspace design that eliminates mechanical interference, allowing the welding gun to access complex joint locations without obstruction.⇒ Automation-Ready: Perfectly suited as a modular resistance welding head for fixture bases or fully automated special-purpose machines (SPM), enabling efficient, high-repeatability spot welding.
- Modular Body Configuration: Available in both Horizontal and Vertical orientations. The modular construction enables seamless integration into diverse machinery frames, automated jigs, and cell layouts.
- Automatic Electrode Wear Compensation: AA standout technical feature powered by WPI's signature Auto-Alignment (Auto-Correction) Structure Design. This advanced mechanism automatically compensates for electrode wear and maintains alignment, ensuring the welding tip (electrode) consistently stays on the exact center axis. By eliminating manual coordinate recalibration, it significantly reduces production downtime and improves weld quality consistency.
- Vertical Retract / Shifting Design: Our vertical gun models incorporate an up-and-down pneumatic shifting mechanism, which retracts the gun automatically for effortless workpiece loading and unloading, preventing interference or damage to the components and electrode tips.
- Customizable Copper Welding Arms: We provide fully customizable high-conductivity copper arms engineered according to your specific workpiece geometry, ensuring optimal throat depth, electrode reach, and electrode force for every unique application.
Applications
- Sheet Metal & Structural Steel Assemblies: Specifically engineered for integration into dedicated fixtures used in heavy-duty framing, chassis components, and localized reinforcements.
- Automated Production Lines & SPMs: Ideal for high-volume manufacturing cells and special-purpose machines (SPM) involving rotary indexing tables, conveyors, or automated multi-axis jigs.
- Custom Metal Enclosures & Cabinets: Widely applied in the production of electrical control boxes, professional tool cabinets, and metal office furniture requiring precise, repeatable weld locations without surface indentation.
The Fixture Spot Welding Gun is the ideal solution for precision resistance spot welding applications where standard stationary spot welders or manual guns are impractical:
