Our manual tip dresser series is engineered for reliable and efficient electrode dressing, helping factories maintain consistent nugget formation and reduce downtime in spot welding operations.
Features
- Compact & Lightweight Design
- Auto-Centering
- Easy Maintenance & Versatility
- High Speed & Low Air Consumption
- Quick tip clamping
- One-hand operation
- Stable dressing hold
- Smooth and controlled cutting performance
- Drill-mount jig converts any standard drill press into a tip dressing station. The upper holder fits the spindle, and the lower base secures the electrode cap.
1. WTD – Manual Tip Dresser
Weighing only 1.3~1.6kg, the well-balanced and lightweight design allows for effortless one-handed operation, ideal for long shifts on the production line.
The built-in auto-center search feature ensures precise alignment and a perfect geometric profile after every cut.

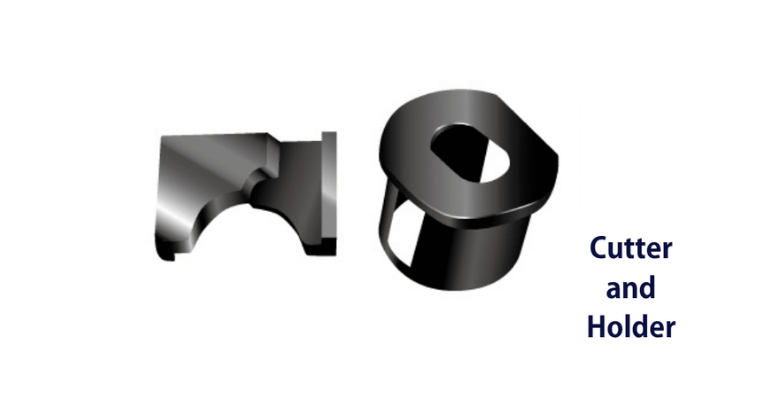

Quick and easy replacement of cutters and holders. Compatible with two electrode diameters (Ø13mm & Ø16mm) and tip shapes, including Round, Dome, and Pencil types.
Delivers high-speed performance at 1,300 RPM for rapid removal of the "mushroomed" portion, all while maintaining low air consumption for superior energy efficiency.

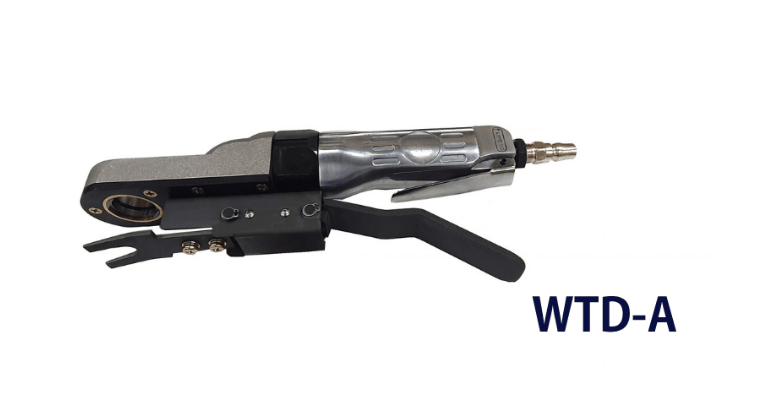

2. WTD-A – Advanced Pneumatic Tip Dresser
Key Features:

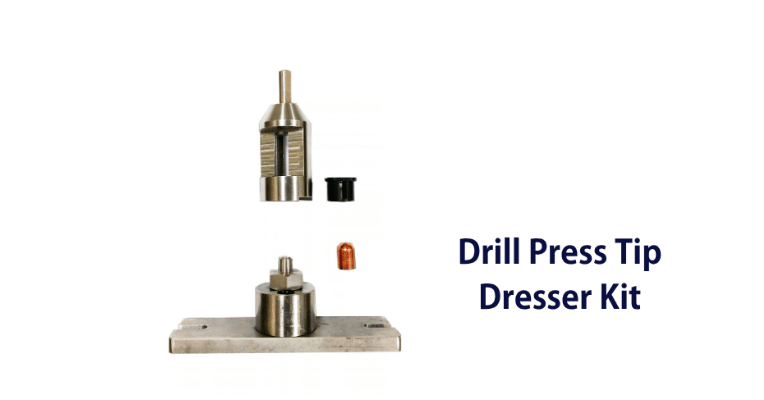

3. Drill Press Tip Dresser Kit
Description
Specifications
