Reliable, Manual-Logic Control for Essential Spot Welding Tasks
WPI Taiwan offers a complete range of Standard Resistance Welding Controls designed for operators who prioritize simplicity, intuitive operation, and long-term durability. Commonly known as "DIP Switch Spot Welding Timers," these analog-style controllers feature a straightforward manual interface that eliminates complex digital menus and programming steps.
Engineered as a foundational control solution for resistance welding equipment, this series focuses on precision timing and basic current control. If you are looking for a cost-effective, plug-and-play DIP switch welding controller that is easy to operate and maintain in rugged factory environments, our DIP switch series is the proven industry-standard choice.
Features
- Intuitive DIP Switch Interface: Welding parameters are set directly via physical DIP switches on the front panel, making settings easy to read, verify, and adjust at a glance.
- Analog-style Logic: A classic, no-frills control system that provides essential weld timing and heat control required for reliable spot welding.
- Simplified Operation: Designed for maximum ease of use, requiring minimal operator training to manage standard resistance welding sequences..
- Industrial Durability: Built with robust internal components to ensure long service life and high stability in harsh manufacturing environments.
- Flexible Mounting Orientation: Available in both Vertical and Horizontal panel layouts to fit various spot welder configurations and cabinet installation spaces.
Specifications
The DIP Switch Series is categorized into two main configurations. Please select the model that best fits your welding machine type and installation requirements.

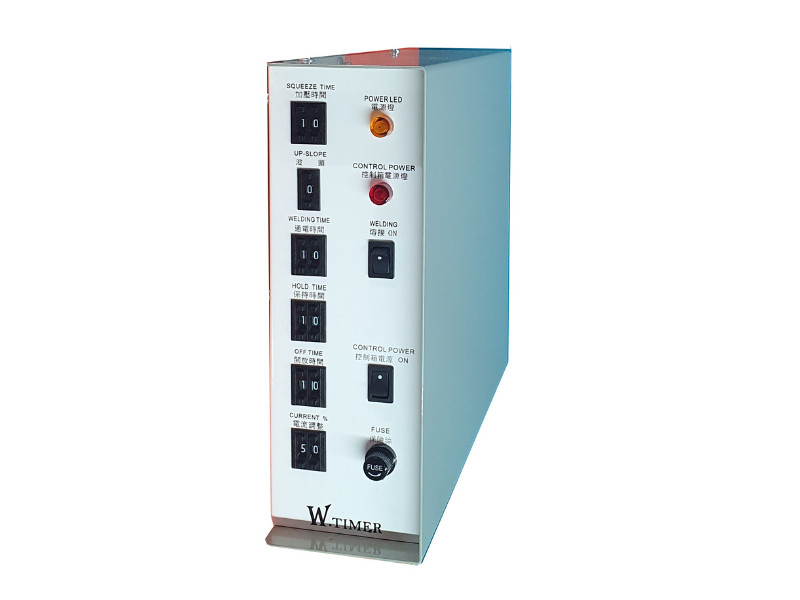

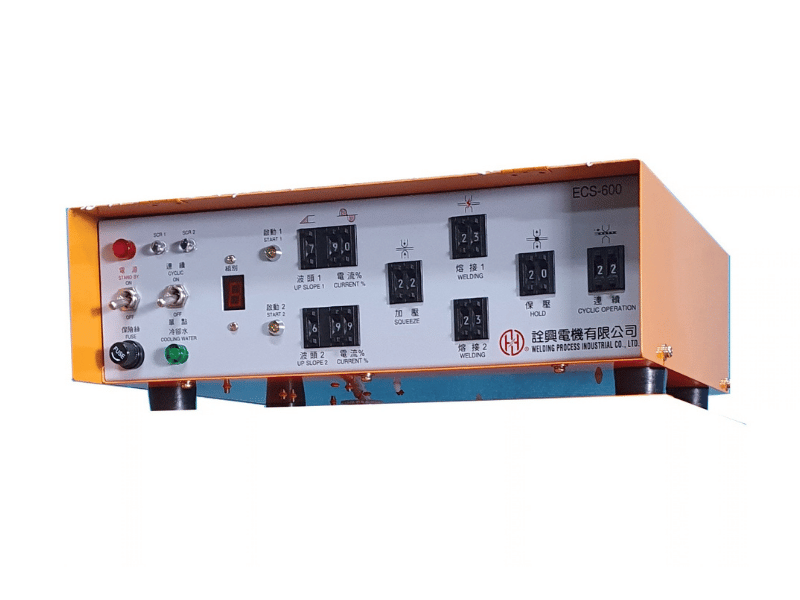

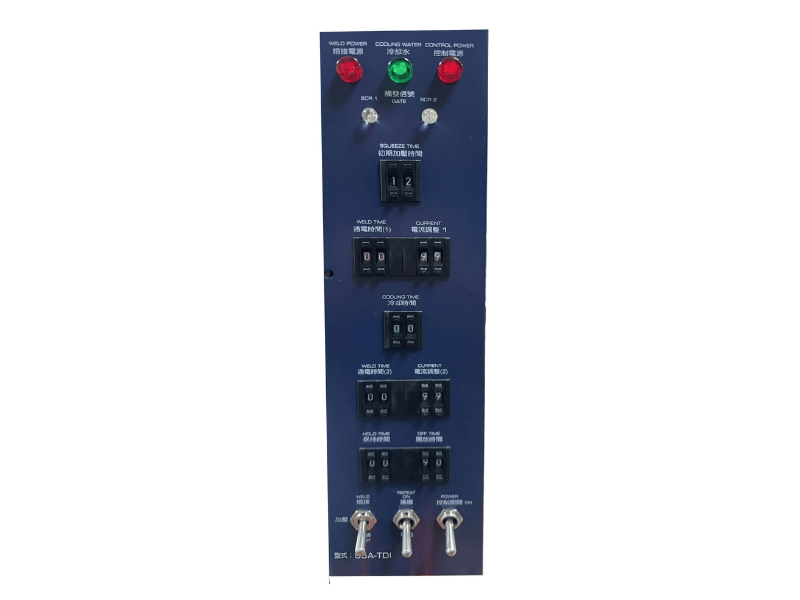

| Feature | Vertical Type | Horizontal Type |
|---|---|---|
| Panel Layout | Slim Vertical Orientation | Wide Horizontal Orientation |
| Control Interface | Manual DIP Switches | Manual DIP Switches |
| Input Voltage | 110V / 220V | 110V |
| Program Memory | Single Program | Two Programs Settings |
| Welding Sequence | 1-Stage / 2-Stage Welding | 1-Stage Welding Only |

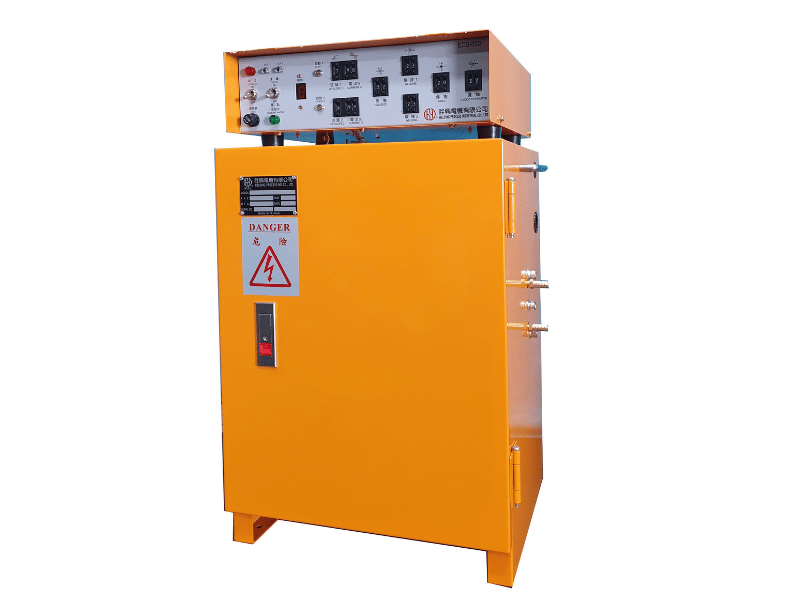

| Optional Add-ons | — | SCR Power Cabinet |
Applications
- Machine Compatibility: Ideal for manual foot-operated welders, pneumatic spot welders, projection welding equipment, and suspension type spot weld guns.
- Customized Configurations: Choose between single or two-stage welding depending on the material thickness and weld quality requirements.
- Installation Versatility: Panels are designed to be mounted directly onto the welding machine or into an external control cabinet.
These controllers are selected based on the specific welder type and the functional requirements of the customer:
