Precision Multi-Point & Multi-Axis Solutions for High-Efficiency Manufacturing

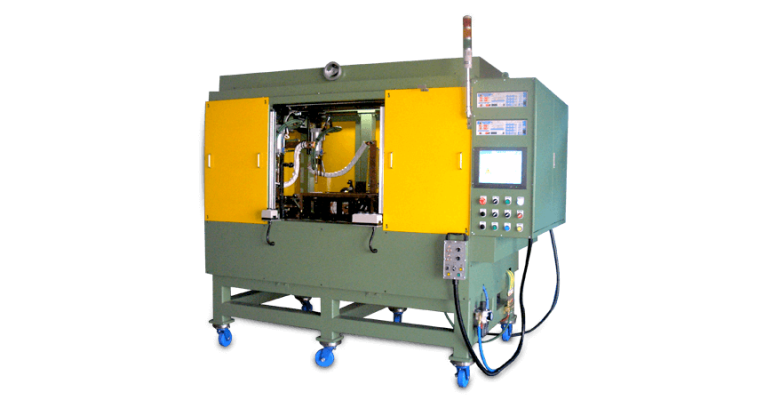

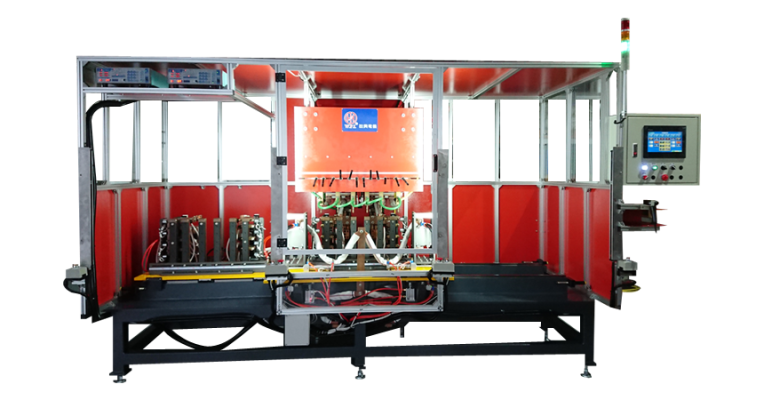

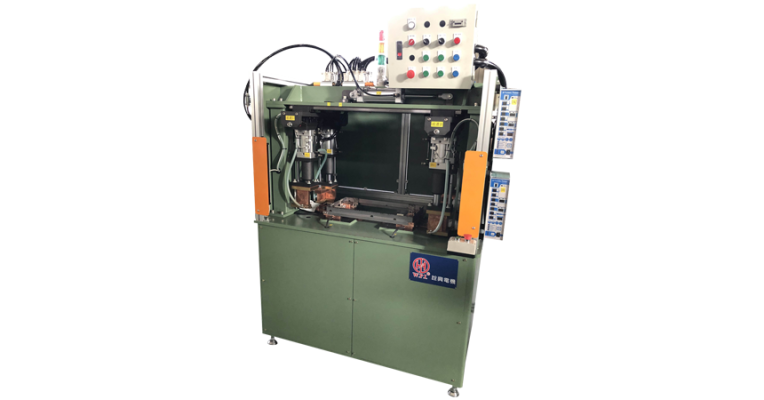

WPI Taiwan’s Semi-Automated Resistance Welding Machines are engineered to bridge the gap between manual spot welding and full line automation. Designed for manufacturers seeking a cost-effective, scalable solution, this system pairs manual loading/unloading with high-performance multi-point or multi-axis electrode configurations.
Whether your production requires simultaneous multi-spot welding or complex workpiece positioning, we provide a consultative engineering approach to evaluate the optimal movement logic — workpiece-moving or electrode-moving (gun-moving) — to maximize your factory’s ROI.
Features
- Customized Electrode Configurations: Tailored multi-point or multi-axis designs to match your specific workpiece geometry for maximum weld positioning precision.
- Scalable Production Modes: AAvailable in Single-Station or Dual-Station configurations, allowing for flexible capacity planning based on your production targets.
- Optimized Welding Efficiency: Choose between Simultaneous Welding (for maximum throughput) or Group Firing / Cascade Welding (for grid power management and thermal control).
- Intelligent Motion Control: Expert evaluation of Workpiece-Moving or Electrode-Moving (Gun-Moving) systems to ensure ergonomic operation and optimal cycle times.
- Cost-Effective Automation: Reduces reliance on manual labor while maintaining high weld consistency, making it the ideal entry-level automation upgrade to reduce operating costs.
View more in action: For specialized applications and custom builds, please visit our [Video Gallery].
Description
Specifications
| Item | Specification | Description |
|---|---|---|
| Power Capacity (KVA) | Customized per Application | Based on material thickness, number of spots, and workpiece dimensions. |
| Drive System | Precision Servo Motor | High-speed positioning & displacement control. |
| Welding Method | Simultaneous or Sequential | Options: All points simultaneously OR programmed sequence/group welding. |
| Operation Mode | Single or Dual-Mode | In-Front/Out-Front or In-Front/Out-Back |
| Control Interface | HMI Touch Panel (PLC) | Intuitive digital parameter adjustment for smart control. |
| Number of Electrodes | Customizable | Tailored to specific workpiece geometry and spacing requirements. |
| Cooling System | Water-Cooled | High-efficiency cooling for stable performance during 24/7 operation. |
| Positioning Accuracy | ± 0.05 mm | High-accuracy servo linear guides ensure perfect repeatability. |
| Frame Structure | Reinforced Heavy-Duty Steel | Vibration-free design to maintain structural alignment over time. |
