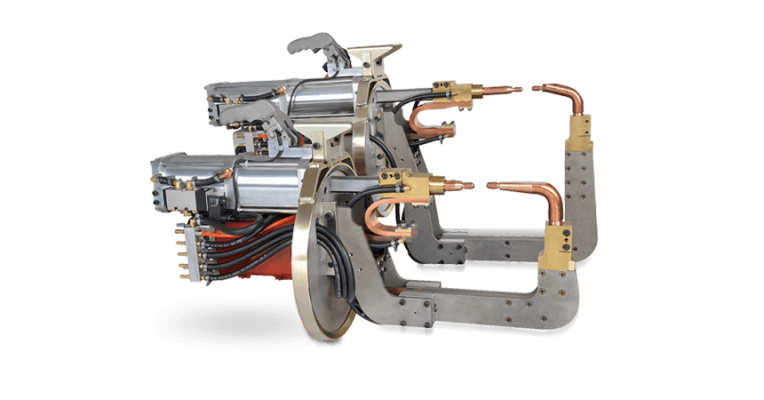

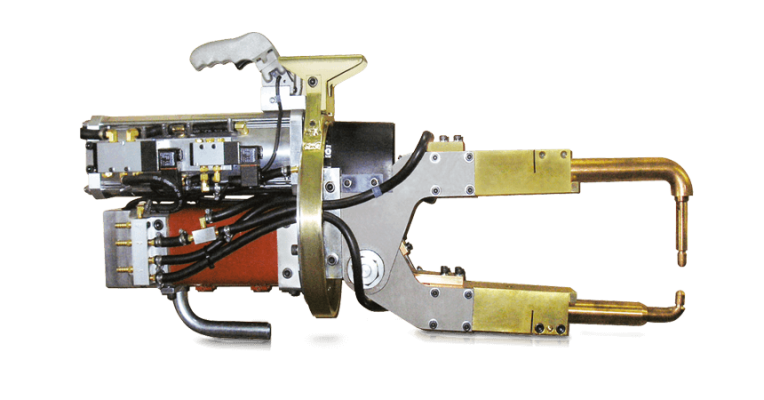

The Heavy Duty Spot Welding Gun, also known as the Strong Structure Spot Welding Gun (SS Gun), is a specialized industrial spot welding solution engineered for high-power and high-pressure demands. Unlike standard equipment, the SS Gun features a chassis constructed from high-grade, heavy-duty steel, providing the extreme structural rigidity necessary for demanding industrial environments.
Designed to withstand high electrode force without deformation, this gun ensures long-term welding accuracy and operational safety. For production lines requiring a robust pneumatic spot welding gun that remains stable under maximum clamping pressure, the SS Gun is the definitive professional choice.
Features
- High-Strength Steel Chassis (Strong Structure): The body is built with ultra-rigid steel, specifically engineered to endure high cylinder pressure and maximum electrode force. This high-rigidity frame guarantees a zero-deformation welding frame even after years of heavy-duty operation.
- Two-Stroke Modular Pressure-Boost Pneumatic Cylinder: Equipped with our proprietary Two-Stroke (Dual-Stroke) and Pressure-Boost technology, this gun provides an exceptional combination of extended stroke length and concentrated high force for consistent weld quality.
- Optimized for High-Power Applications: Specifically designed as a high-power spot welding gun, it excels in environments where high electrode force is required to ensure structural integrity.
- Ergonomic Weight-Balanced Design: Despite its heavy-duty build, the gun features an ergonomic, weight-balanced design. This allows operators to move and position the gun with ease, ensuring high mobility for large-scale spot welding applications.
- Industrial-Grade Durability: By utilizing a high-rigidity frame, the SS Gun minimizes structural stress, providing a durable spot welding gun solution for demanding industrial environments.
Description
Specifications
SS A-Gun
| Central Throat Width (mm) | 200 | 260 | 320 | 380 | 440 | 500 |
|---|---|---|---|---|---|---|
| 48KVA | CHO-484AU | CHO-485AU | CHO-486AU | CHO-487AU | CHO-488AU | CHO-489AU |
| 72KVA | CHO-724AR | CHO-725AR | CHO-726AR | CHO-727AR | CHO-728AR | CHO-729AR |
| 93KVA | CHO-934AR | CHO-935AR | CHO-936AR | CHO-937AR | CHO-938AR | CHO-939AR |
| 116KVA | CHO-1164AR | CHO-1165AR | CHO-1166AR | CHO-1167AR | CHO-1168AR | CHO-1169AR |

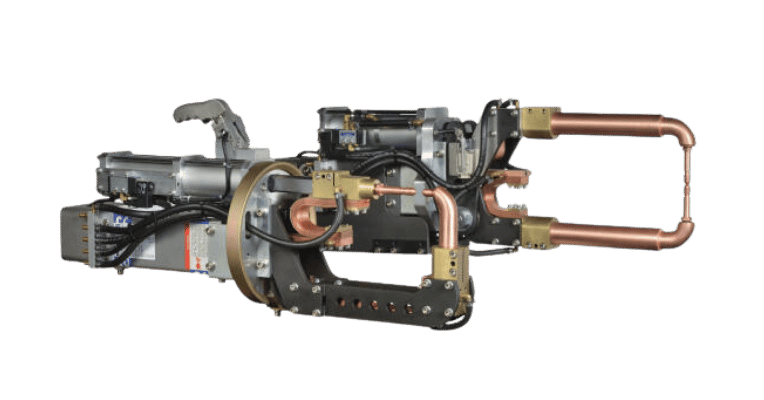

SS C-Gun
| Stroke (mm) | 100 | 150 | Over 150 |
|---|---|---|---|
| 48KVA | CHO-48-H-CU-II 100 | CHO-48-H-CU-II 150 | Order Made |
| 72KVA | CHO-72-H-CR-II 100 | CHO-72H-CR-II 150 | Order Made |
| 93KVA | CHO-93-H-CR-II 100 | CHO-93-H-CR-II 150 | Order Made |
| 116KVA | CHO-116-H-CR-II 100 | CHO-116-H-CR-II 150 | Order Made |
Input Voltage: 220V / 380V / 440V (Customizable for Global Standards)
Available in custom configurations with large throat width for bulky components
Applications
- Large Throat Depth & Width Operations: Optimized for welding tasks requiring a large throat depth or large throat width, allowing deep access into complex assemblies.
- High-Pressure Industrial Manufacturing: A perfect match for manufacturing lines—such as automotive frames and heavy machinery—that demand consistent, high electrode tip force welding.
- Large-Scale Component Assembly: Ideal for welding bulky metal structures where standard guns lack the required reach or structural rigidity.
- Heavy-Duty Metal Fabrication: Essential for demanding applications where durability and precision under high pressure are essential.
The SS Gun is the ideal spot welding gun for large workpieces requiring extended reach and high structural stability:
