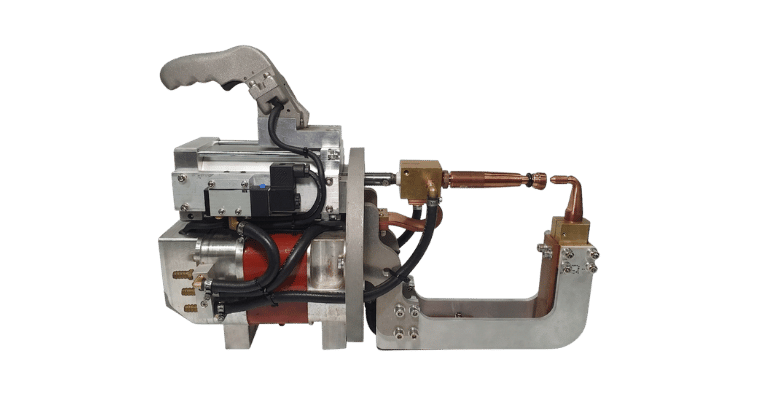

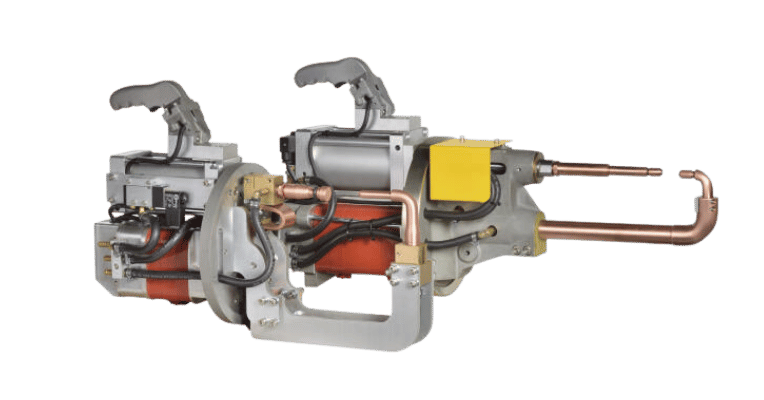

C-Type Pneumatic Spot Welding Gun: The Corner Precision Specialist
The C-Type Spot Welding Gun is a high-performance industrial solution designed for specialized welding tasks that standard guns cannot reach. Featuring a unique linear forward-push clamping mechanism, the C-Type gun excels at welding vertical workpieces, providing a distinct advantage over the horizontal stroke of X-Type guns. Like our X-Type models, the C-Type gun offers full rotation and tilting flexibility, ensuring zero dead angles. However, its true value lies in its role as a dedicated machine: each unit is custom-engineered with unique electrode arm dimensions to fit your specific production requirements perfectly.
Features
-
Linear Vertical Clamping: Optimized for vertical workpieces, the straight-line stroke action delivers consistent clamping force and high-quality weld nuggets in tight spaces.
-
360° Maneuverability: Highly flexible rotation and tilting capabilities allow operators to navigate complex workpiece geometries without dead zones.
-
100% Customized Engineering: Every C-Type spot welding gun is a bespoke solution. We design and manufacture custom electrode arm geometries to match your specific part dimensions.
-
Specialized Corner Access: The compact C-frame design enables deep reach into narrow channels and internal corners that are inaccessible to X-Type spot welding guns.
-
High-Efficiency Thermal Control: An integrated water-cooling system ensures stable current output and extends electrode life during high-cycle industrial use.
Description
Specifications
| KVA \ Stroke-mm | 40 | 60 | 80 | 100~150 |
|---|---|---|---|---|
| 14KVA | CH-14-H-CU- II 40 | CH-14-H-CU- II 60 | - | - |
| 27KVA | CH-273CU- II 40 | CH-273CU- II 60 | CH-273CU- II 80 | Order Made |
| 31KVA | CH-313CU- II 40 | CH-313CU- II 60 | CH-313CU- II 80 | Order Made |
| 48KVA | CH-413CU- II 40 | CH-413CU- II 60 | CH-413CU- II 80 | Order Made |
Applications
- HVAC & Air Conditioning Housing: Essential for welding the internal structural corners and brackets of aircon units.

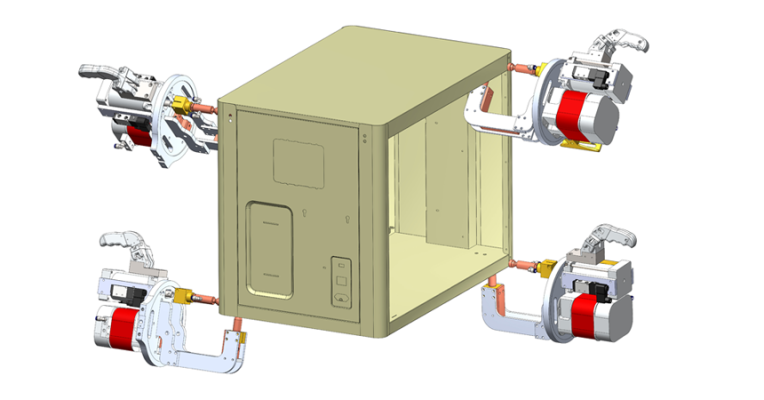

- Electrical Enclosures & Metal Boxes: The primary choice for assembling the tight interior corners of electrical enclosures and steel cabinets.
- Specialized Automotive Frames: Reaching reinforced pillars and deep-seated interior panels where vertical clamping is required.
While the C-Type spot welding gun is a specialized tool, it is indispensable for complex assembly scenarios where horizontal access is restricted:
