Industry Overview
The HVAC (Heating, Ventilation, and Air Conditioning) industry relies heavily on galvanized steel to ensure corrosion resistance and long-term durability. However, the presence of the zinc layer presents significant welding challenges, such as electrode sticking, inconsistent penetration, and rapid tip contamination. WPI Taiwan provides specialized resistance welding systems—ranging from flexible suspension guns to intelligent microcomputer controllers—specifically designed to handle the complexities of HVAC ducting and rigid air conditioner frame assembly.
Solving HVAC Fabrication Challenges: The WPI Advantage
1. Mastering Galvanized Steel: Multi-Stage Microcomputer Control
To prevent rust and maintain structural integrity, galvanized steel is the standard for HVAC components. Welding zinc-coated materials requires a sophisticated approach to manage the low melting point of the coating.
- Intelligent Multi-Stage Welding: WPI’s Microcomputer Weld Controls are the ideal choice for this industry. They provide multi-stage current delivery, which allows the first stage to displace the zinc coating before the secondary pulse performs the core weld.
- Quality Consistency: This precise timing prevents zinc contamination of the weld nugget, ensuring high-strength joints that meet strict ventilation standards.
2. Maintenance Efficiency: On-site Pneumatic Electrode Dressing
A major obstacle in welding galvanized steel is the formation of insulating white zinc oxide on the electrode tips. This buildup requires much more frequent maintenance compared to standard steel welding.

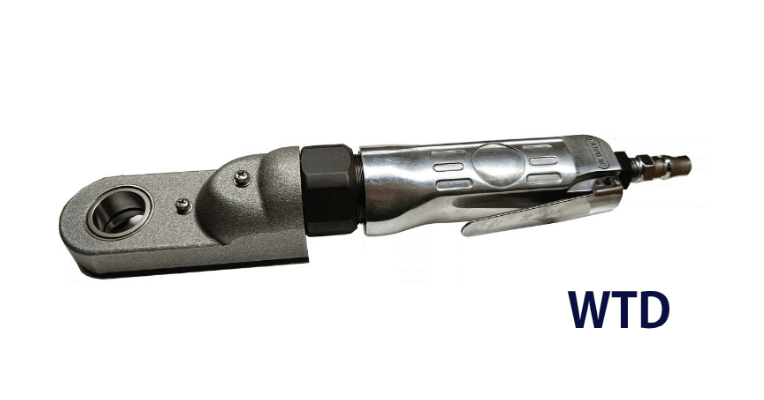

- On-site Rapid Recovery: To combat rapid tip degradation, the use of a Tip Dresser is essential. This tool allows operators to perform fast, high-precision grinding on-site without removing the electrodes from the gun.
- Continuous Production: By quickly restoring the electrode geometry and removing the oxide layer, the dresser ensures consistent current density and prevents production downtime, making it a mandatory tool for high-efficiency HVAC lines.
3. Reaching Into the Flow: X-Type Suspension Systems for Ducting
HVAC ducts come in a vast array of diameters and lengths, often forming long, restrictive tube-like structures.
- Deep-Reach Tube Welding: For both large and small-diameter ducts, WPI’s X-Type Suspension Spot Welding Guns are the superior solution. The elongated X-type arms allow the welder to reach deep into the interior of the ducting to secure internal seams and brackets.
- Unrestricted Access: By utilizing a “Mobile Welder” approach, operators can maneuver around complex ductwork without the logistical difficulty of moving large, hollow workpieces.
4. Corner Stability: C-Type Suspension Guns for AC Frames
The external chassis and support frames of air conditioning units, also known as AC housing, require rigid, square assembly.
- Precision Corner Joining: For the four corners and perimeter of AC frames, the C-Type Suspension Weld Gun is exceptionally effective. Its compact “hook-action” stroke allows it to clamp and weld frame edges and corner reinforcements with high speed and precision.
- Maneuverability: Combined with a spring balancer, the C-gun offers effortless weightlessness, allowing operators to move quickly between joints on an assembly line.
5. Scalable Productivity: Robotic Integration for Housing
For high-volume production of standardized outdoor unit frames and chassis panels, automation is key to maintaining competitiveness.
- Robotic Spot Welding Guns: Our robotic guns can be integrated into fully automated cells to handle the repetitive welding of AC housing panels and internal supports, ensuring 24/7 production with zero human error.
Recommended Equipment for HVAC & AC Manufacturing
- Microcomputer Weld Controls: Essential for multi-pulse welding on galvanized sheets to ensure rust-free, high-strength bonds.
- Pneumatic Electrode Dresser: A critical tool for rapid on-site removal of zinc oxide buildup to maintain weld quality.
- Suspension Type Spot Welding Gun: X-Type, specifically for internal ducting and long-tube geometries.
- Suspension Type Spot Welding Gun: C-Type, optimized for AC frame corners and chassis sub-assembly.
- Robotic Spot Welding Gun: For high-speed, automated production of AC external housing and standardized brackets.
