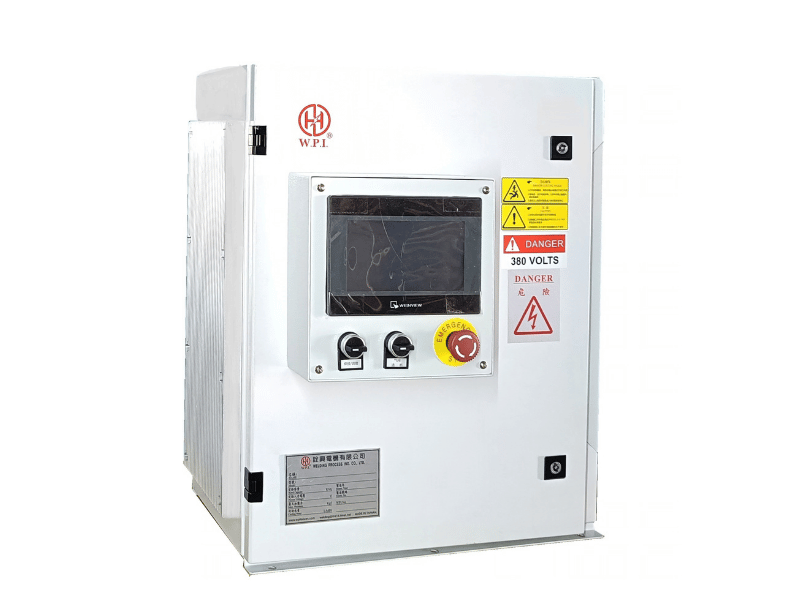

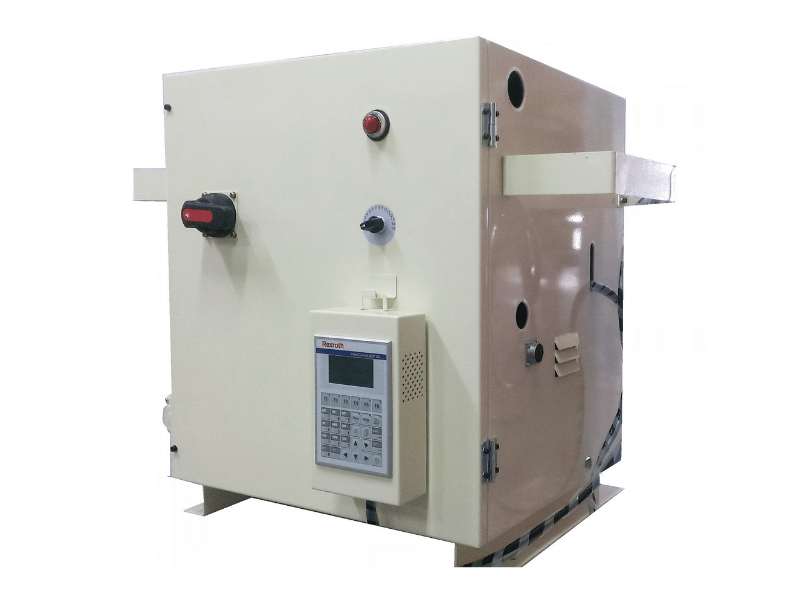

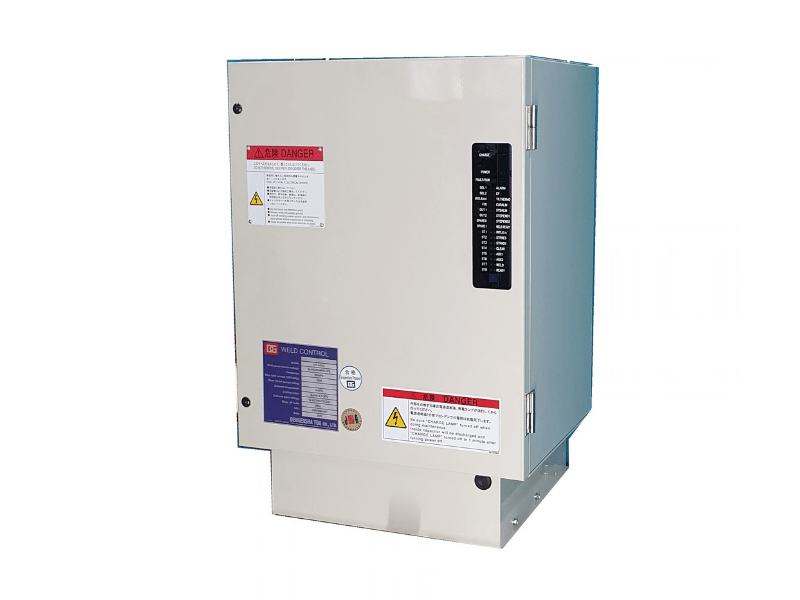

Next-Generation Inverter Resistance Weld Controls – Precision, Efficiency, and Power
The evolution of resistance welding is defined by precise control. WPI’s Inverter Welding Control Systems offer advanced power management solutions for modern smart manufacturing. By utilizing high-frequency inverter technology, these systems deliver a significant leap in weld quality and energy efficiency compared to traditional AC welding transformers.
Our inverter series includes AC Inverter, DC Inverter, and Mid-Frequency DC (MFDC) Control Systems. These units are engineered for industries that demand ultra-fast response times, millisecond-level process control, and significant energy savings. Whether you are retrofitting existing equipment or building a new automated line, our inverter controls provide the process stability required for the most challenging welding applications.
Features
- High-Frequency Precision (over 1000Hz): Delivers a stable, concentrated current output that enables millisecond-level precision, drastically improving weld nugget consistency and strength.
- Superior Energy Efficiency: A three-phase balanced load design reduces peak power demand and improves the power factor, leading to significantly lower operational energy costs.
- Optimized for Non-Ferrous & High-Conductivity Metals: MFDC and DC Inverter systems provide the thermal efficiency required for challenging materials like aluminum, galvanized steel, and copper alloys.
- Enhanced Electrode & Tooling Life: Effective thermal control reduces welding cycle times and minimizes heat buildup in electrodes, significantly extending electrode life and lowering maintenance downtime.
- Seamless System Retrofitting: Designed to be compatible with existing AC welding transformers, allowing for easy and cost-effective retrofits and upgrades for legacy welding machines.
- Advanced Real-Time Monitoring: Real-time feedback loops provide Constant Current Control (CCC) with instant fault detection to prevent defective welds and production losses.
Specifications
| Feature | AC Inverter Control | DC Inverter Control |
|---|---|---|
| Input Phase | Three-Phase | Three-Phase |
| Output Frequency | High-Frequency AC | 1000Hz ~ 3000Hz |
| Control Precision | Millisecond-level | Ultra-High (Millisecond-level) |
| Primary Advantage | Energy Saving & Easy Upgrade | Ultra-Stable Output & High Heat Efficiency |
| Ideal Materials | Standard Steel, Stainless Steel | Aluminum, High Tension Steel, HSS |
| Energy Consumption | Low | Ultra-Low (High Power Factor) |
| Compatible Hardware | Works with AC Transformers | Requires Inverter Transformer |
Applications
- Automotive Industry: Essential for welding aluminum car bodies, high-strength steel (HSS), and safety-critical components.
- Aerospace & Precision Electronics: Provides the ultra-fine control needed for delicate components and specialized alloys.
- Green Manufacturing: A must-have for factories aiming to reduce carbon footprints through high-efficiency, low-energy consumption equipment.
Inverter technology is the preferred choice for high-tech and high-volume sectors:
