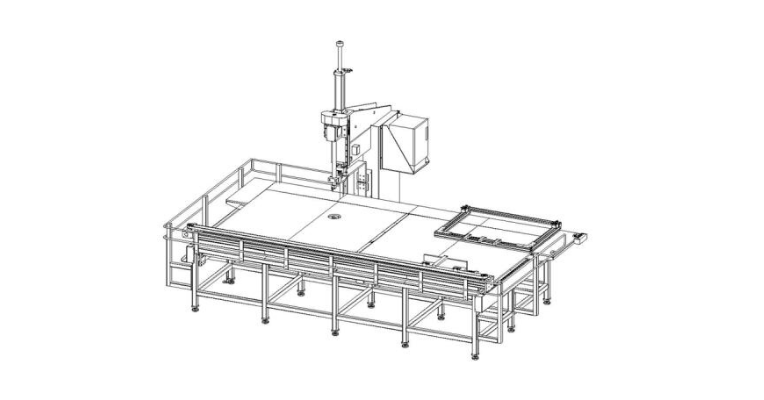

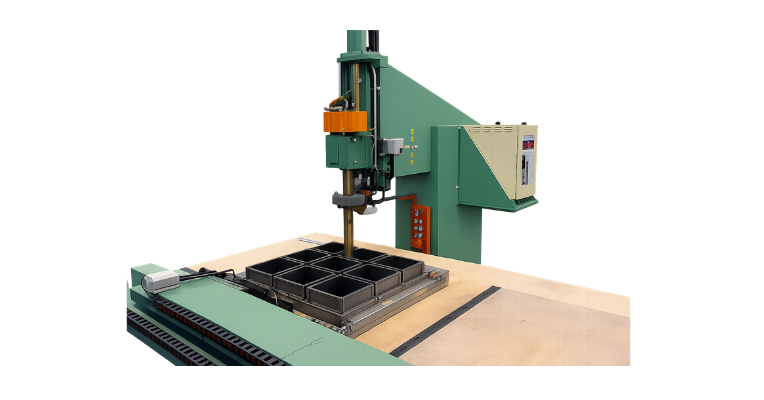

WPI Taiwan’s XY Axis Move Spot Welding Equipment is engineered for maximum manufacturing flexibility. Featuring a high-precision XY-axis servo motion control system and a rotational electrode assembly, this machine excels at handling diverse sheet metal dimensions. Whether welding various sizes of steel cabinets, enclosures, or door panels, our customized tooling fixtures ensure seamless changeovers and maximum machine utilization — making it the ideal solution for both high-volume production and low-volume prototyping.
Features
- Universal Fixture Design: Engineered for maximum versatility, our modular fixtures accommodate any workpiece with a rectangular footprint — supporting large single cabinets or multiple small enclosures simultaneously for batch processing.
- Zero-Interference Z-Axis Rotation: The welding head features Z-axis servo rotation, allowing electrodes to reach deep into interior cabinet corners and dead zones without mechanical interference — ensuring complete joint strength and structural integrity..
- Dual-Stroke Cylinder Technology: Features a 300mm extended retract stroke to easily clear tall cabinet sidewalls, combined with a short working stroke for high-speed, rapid spot welding once in position.
- XY-Axis Servo Precision: Programmable XY servo positioning provides unmatched repeatability and flexibility, making it especially valuable for prototype R&D and low-volume trial production.
- One Machine, Multiple Applications: Highly versatile for welding both cabinets and door panels, eliminating the need for multiple dedicated welders and optimizing floor space.
- Energy-Efficient AC Inverter Control: Paired with an advanced AC Inverter Welding Controller for superior power efficiency, making it the ideal choice for facilities with grid power constraints or high electricity costs.
Description
Specifications
| Category | Technical Specification |
|---|---|
| Model Type | XY-Axis Servo-Driven Move Spot Welder |
| Motion Control | 3-Axis (XY-Axis Workpiece Movement + Z-Axis Electrode Rotation) |
| Positioning System | High-Precision Servo Motor with PLC Logic Control |
| Cylinder Type | Dual-Stroke (300mm Clearance / Short-Stroke Welding) |
| Operation Mode | Dual-Mode Alternating (Continuous Loading/Unloading) |
| Controller Type | Energy-Saving AC Inverter Controller |
| Fixture Capacity | Multi-size rectangular grouping (Cabinets & Door Panels) |
| HMI Interface | User-friendly Touchscreen for rapid parameter setup |
| Application Range | Steel Enclosures, Server Racks, Metal Furniture, & Prototypes |
